Night Vision Monoculars»ATN NVM14-3 Night Vision Monocular, Gen 3
ATN NVM14-3 Night Vision Monocular, Gen 3
Product ID: NVMPAN1430
List Price: $2,999.00
Price: $2,899.00
You Save: $100.00
Free 2nd Day Shipping!
 |
 |
Our ATN NVM14-3 Night Vision Monocular, Gen 3
Image Intensifier Tube Type: Standard Generation 3
Image Tube Summary: The Standard Generation 3 image tube is a very good value. These are the least expensive of the Gen 3 products and offer good performance however not as good as the Gen 3A (Alpha or A Grade) image tubes. These Standard Gen 3 tubes will typically have more imperfections and not as strong low light performance as the Gen 3A units, however they are still a very big step up in performance from Gen 2 equipment and offer long Gen 3 image tube life.
Product Info:

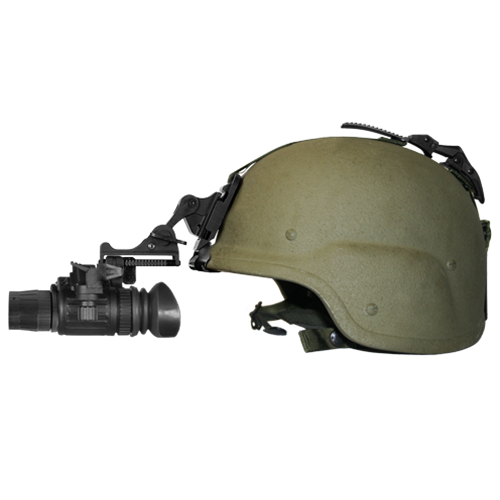

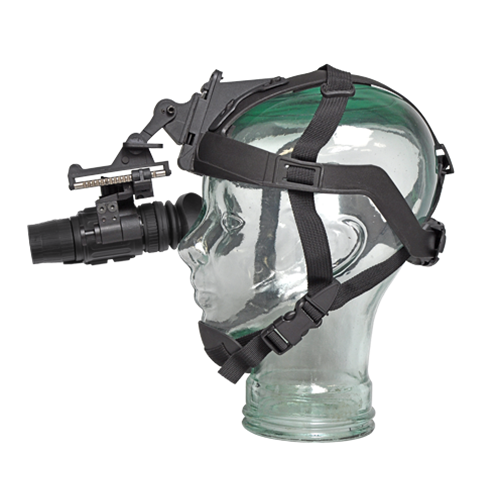

The ATN NVM14-3 is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision System that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus and eyepiece focus. The device is also equipped with an Infrared light-emitting source.
The ATN NVM14-3 Night Vision Monocular utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the Night Vision Monocular consists of an objective lens, an Image Intensifier Tube and an eyepiece.
Even under unsteady brightness conditions, Automatic Brightness Adjustment System always keeps the IIT brightness level constant. The Automatic Protective System controls the existing illumination level through the photo receiver. If the illumination level surpasses 100-300 lx for the following 10 seconds, the Monocular will shut off automatically.
The eyepiece incorporates several LED indicators:
- Red - serves as an IR Illuminator Indicator and an Battery Low Indicator at a time.
- Green - serves as an Excessive Brightness Indicator. If the bright light remains unchanged for over 10 seconds after the indicator turns on, the Monocular will automatically shut-off.
Included items:
**Export of most Night Vision and Thermal Imaging equipment and accessories is strictly regulated by the US Department of State in accordance with the International Traffic in Arms Regulations (ITAR). By adding to cart or ordering by phone you acknowledge, understand, and agree to our Export Policy. You attest that you are a U.S. person and do not intend to export this product.
Image Intensifier Tube Type: Standard Generation 3
Image Tube Summary: The Standard Generation 3 image tube is a very good value. These are the least expensive of the Gen 3 products and offer good performance however not as good as the Gen 3A (Alpha or A Grade) image tubes. These Standard Gen 3 tubes will typically have more imperfections and not as strong low light performance as the Gen 3A units, however they are still a very big step up in performance from Gen 2 equipment and offer long Gen 3 image tube life.
Product Info:
The ATN NVM14-3 is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision System that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus and eyepiece focus. The device is also equipped with an Infrared light-emitting source.
The ATN NVM14-3 Night Vision Monocular utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the Night Vision Monocular consists of an objective lens, an Image Intensifier Tube and an eyepiece.
Even under unsteady brightness conditions, Automatic Brightness Adjustment System always keeps the IIT brightness level constant. The Automatic Protective System controls the existing illumination level through the photo receiver. If the illumination level surpasses 100-300 lx for the following 10 seconds, the Monocular will shut off automatically.
The eyepiece incorporates several LED indicators:
- Red - serves as an IR Illuminator Indicator and an Battery Low Indicator at a time.
- Green - serves as an Excessive Brightness Indicator. If the bright light remains unchanged for over 10 seconds after the indicator turns on, the Monocular will automatically shut-off.
Included items:
- Instruction Manual
- Lens Tissue
- One Lithium Battery
- Warranty card
- Neck Cord
- Packing box
- Lens Cap
- Soft carrying Case
- Battery Adapter
**Export of most Night Vision and Thermal Imaging equipment and accessories is strictly regulated by the US Department of State in accordance with the International Traffic in Arms Regulations (ITAR). By adding to cart or ordering by phone you acknowledge, understand, and agree to our Export Policy. You attest that you are a U.S. person and do not intend to export this product.
| Generation: | Gen 3 |
| Image Tube Type: | Gen 3 Standard |
| Image Tube Data Sheet Included: | No |
| Dimensions: | 4.7 x 1.9 x 2.7 inches |
| Weight Ounces: | 12 ounces |
| FOV @1000 yards: | 40* |
| Magnification: | 1x |
| Battery Type-Life: | 3 v Lithium 50 hours |
| Lens Type: | 27mm f1.2 |
| Resolution: | 64 lp/mm |
| Range of Focus: | "10"" to infinity" |
| Ir Illuminator: | Built in flood |
| Environmental Rating: | Waterproof |
| Diopter Ajustment: | -6 to +2 |
| Operating Temperature: | -40 to 122 * F |
| Warranty: | 2 Years |
- Rugged design
- Compact and Lightweight
- Waterproof
- Head or helmet mountable for hands-free usage
- Weapon mountable
- Auto Brightness Control
- Bright Light Cut-off
- Total Darkness Technology with built-in infrared illuminator and flood lens
- Compatible with most IR lasers
- Adaptable for use with cameras
- Ergonomic, simple, easy-to-operate controls
- Utilizes either a 123? Lithium battery or an AA Alkaline
- Battery Adapter included
- Optionally available patented Life Tracker System for measuring hours of operation
- Limited two-year warranty
