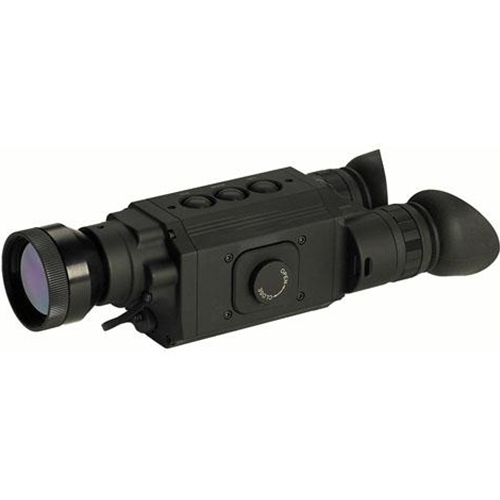

The BTS Thermal Binocular System is one of  the best Thermal Binoculars on the market. The performance and quality rival most thermal devices priced well over 10k. It's ability to add the removable 3x optical  thermal magnification lens gives the unit great range extendability without a loss of resolution as well as wide field of view capability with the 3x lens removed. This feature makes the BTS extremely versatile and capable of almost any Thermal Imaging task. Easy to use controls and it's proven durability make it one of our top Thermal choices.

BTS is a state of the art uncooled thermal imaging binocular designed to meet demanding needs of law enforcement and security professionals.  BTS thermal imaging binocular offers unsurpassed performance when used for medium range surveillance, search and rescue operations, perimeter control, and vehicle identification in addition to a wide variety of other applications.

Regardless of ambient light conditions, smoke or haze, BTS thermal imaging binocular detects even the slightest temperature differences of everything in the field of view and provides the user clear “white hot” or “black hot” images of what otherwise would be invisible to the naked eye.

The thermal imager can be powered by lithium CR123 batteries or it can be connected to an external 12 VDC power source or AC/DC adapters. Built-in electronics automatically selects external power when it is available and preserves battery life to the greatest extent possible.

User Interface:

• Rotary power switch: OFF, ON,
Display OFF
• Calibration: Image touch-up
• Zoom: 2x, 4x e-zoom
• Polarity: Black hot/white

Kit Includes:

• Thermal camera
• Hard carrying case
• Soft carrying case
• Neck lanyard
• Batteries
• Lens cleaning tissue
• Operator’s manual

Sensor type  Amorphous Silicon Microbolometer • Sensor resolution 320 x 240 • Spectral response, μm 7-14 • Thermal sensitivity, mK <50 • Refresh rate, hz 30 (9 optional) • Start-up time, sec <4 • Range to detect human activity, m/ft 914 / 3000 • Field of view, ° 12 x 9 • Focus Manual • Analog output NTSC or PAL • Diopter adjustment - 4 to +5 • Power internal CR123 (4) • Power external Automotive 12 VDC • Weight, g/oz 950 / 33 • Dimensions, in/mm 9 x 3 x 4 / 230 x 78 x 109 • Waterproof to IP67

• Ergonomic binocular design
• Ability to see through smog, fog, foliage, absolute
darkness
• 320x240 resolution
• Military quality/durability
• Waterproof and shockproof
• Custom configured to PAL or NTSC format
• Optional  3x optical lens allows users a wide field-of-view 1x configuration or "zoomed in" with the 3x lens attached
