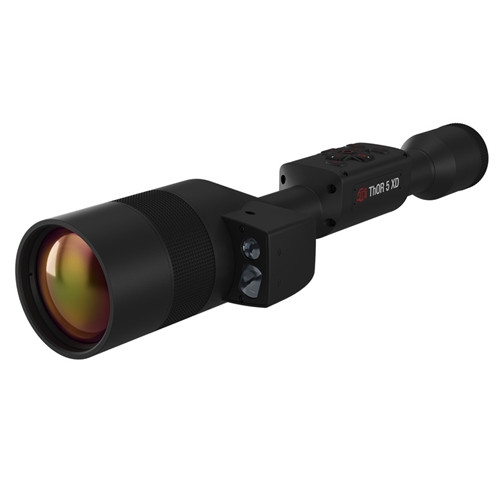

ATN Thor 5 XD LRF 1280 12um 3x-30x 70mm Smart HD Thermal w Laser Rangefinder

For those who must make their shots at any distance
– LRF has been built in on the side in the smallest form factor ever. Giving you unprecedented precision at up 1000 yards with the internal Ballistic Calculator.*
One Shot Zero, Profile Manager, Ballistic calcula- tor, Long Battery Life, Smart Mil-Dot Reticle, RAV (automatic recording of your “kill shot”), Dual Stream Video, IOS & Android Aps, Radar (for group coordinated action), and many more Features make Gen 5 ThORs a true marvel of science.
Includes:
USB-C Cable
HP QDM Mount
Flip Open Lens Cap
Model |
ThOR 5 XD |
ThOR 5 XD LRF |
||||
ThOR 5 XD 2-20x |
ThOR 5 XD 3-30x |
ThOR 5 XD 4-40x |
ThOR 5 XD LRF 2-20x |
ThOR 5 XD LRF 3-30x |
ThOR 5 XD LRF 4-40x |
|
Item # |
TIWST51250A |
TIWST51275A |
TIWST51210A |
TIWST51250LRF |
TIWST51275LRF |
TIWST51210LRF |
Laser Rangefinder |
No |
Yes |
||||
Sensor |
1280x1024 60 fps 12 µm |
|||||
Magnification |
2-20´ |
3-30´ |
4-40´ |
2-20´ |
3-30´ |
4-40´ |
Field of view, degrees |
17.6x13.2 |
11.8x8.8 |
8.8x6.6 |
17.6x13.2 |
11.8x8.8 |
8.8x6.6 |
Core |
ATN Gen V Quad Core T |
|||||
Micro Display |
OLED display 1024x768 |
|||||
Eye relief |
90 mm |
|||||
Video Record Resolution |
Up to 1280x960 @ 60 fps |
|||||
Ballistic Calculator |
Yes |
|||||
WiFi (Streaming, Gallery, & Controls) |
iOS & Android |
|||||
Bluetooth |
Yes |
|||||
3D Gyroscope |
Yes |
|||||
3D Accelerometer |
Yes |
|||||
RAV (Recoil Activated Video) |
Yes |
|||||
Electronic Compass |
Yes |
|||||
Smooth Zoom |
Yes |
|||||
Radar |
Yes |
|||||
Reticles |
Multiple Patterns & Color Options, User Custom reticles |
|||||
Reticle Editor |
Yes |
|||||
Microphone |
Yes |
|||||
MicroSD card |
4 to 64 Gb |
|||||
USB, type C |
Yes |
|||||
Mount |
30 mm HP QDM |
|||||
Battery life (Li-ion) |
10 hrs |
|||||
Waterproof rating / IP rating |
Weather resistant |
|||||
Human Detection Range |
2150 |
3200 |
4000 |
2150 |
3200 |
4000 |
Human Recognition Range |
860 |
1440 |
1800 |
860 |
1440 |
1800 |
Human Identification Range |
480 |
610 |
720 |
480 |
610 |
720 |
Operating Temperature |
-20°F to +120°F / -28°C to 48°C |
|||||
Dimensions |
14.4”x2.9”x2.9” 365x73x73 mm |
15.5”x2.9”x2.9” 395x73x73 mm |
16.7”x2.9”x2.9” 425х73x73 mm |
14.4”x2.9”x2.9” 365x96x73 mm |
15.5”x2.9”x2.9” 395x96x73 mm |
16.7”x2.9”x2.9” 425х96x73 mm |
Weight |
2.5 lb / 1.133 kg |
2.7 lb / 1.203 kg |
||||
Warranty |
3 years |

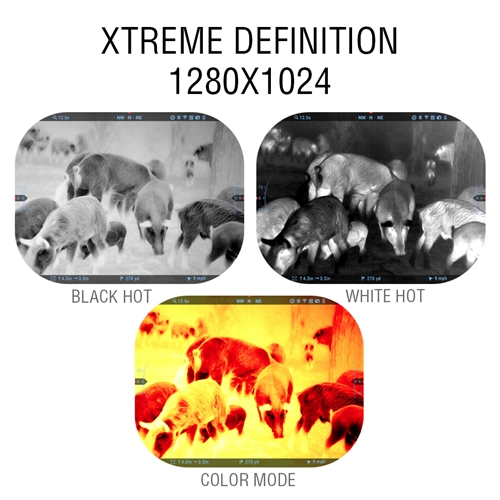

- 1280 x 1024 XTREME DEFINITION THERMAL SENSOR
- LASER RANGEFINDER
- RECORD HD VIDEO
- DUAL STREAM VIDEO
- SMOOTH ZOOM
- E-COMPASS
- WIFI DUAL STREAMING
- COLOR MODE
- COMFORTABLE EYE RELIEF
- CUSTOM RETICLE EDITOR
- BALLISTIC CALCULATOR
- ONE SHOT ZERO
- RAV PROFILE MANAGER
- ULTRA LOW POWER CONSUMPTION
- 3 YR WARRANTY
