InfiRay HCH50R HYBRID COMPACT 640 10um 3.5x 50mm 60Hz Multi-Function Thermal Laser Rangefinder
In stock
Regular Price: $6,799.00
On Sale For: $6,499.00
Free 2nd Day Shipping |
The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and
video recording with 64GB of internal storage lets you capture every detail.
video recording with 64GB of internal storage lets you capture every detail.

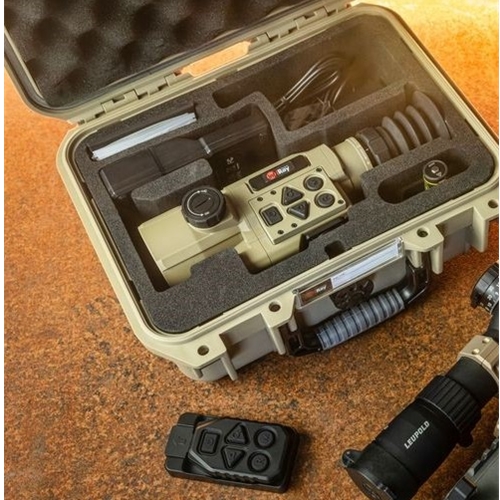

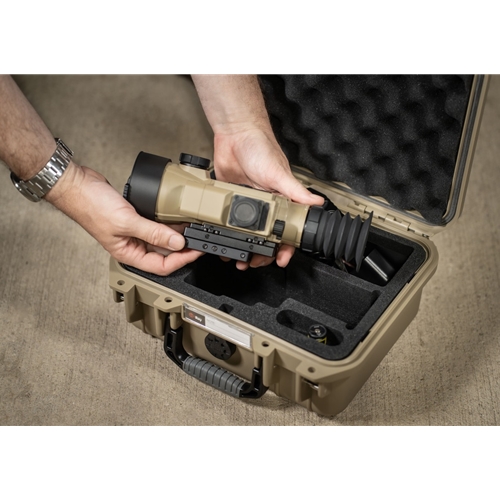

Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery , the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.
The HYBRID COMPACT rifle scope ships with everything you need to get out and hunt.
• 50mm Objective Lens Cap
• Standard Rubber Eyeguard
• DLOC QD Mount for HYBRID COMPACT
• Adapter Bracket
• Screws for the Mount and Adapter
• Hex Keys and Spanner Tool
• Bluetooth Remote Control
• USB-C Cable
• 18650 Battery ×2
• USB-C Power Adapter
• Hard Case
• Lens Cloth
• User Manual
• 50mm Objective Lens Cap
• Standard Rubber Eyeguard
• DLOC QD Mount for HYBRID COMPACT
• Adapter Bracket
• Screws for the Mount and Adapter
• Hex Keys and Spanner Tool
• Bluetooth Remote Control
• USB-C Cable
• 18650 Battery ×2
• USB-C Power Adapter
• Hard Case
• Lens Cloth
• User Manual
Sensor Specifications
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Device Technology
Thermal Imaging
Sensor Resolution
640×480
Sensor Type
InfiRay MICRO II
Sensor Pixel Size
10μm
Thermal Sensitivity
<15mk
Sensor Frame Rate
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
Device Technology
Thermal Imaging
Sensor Resolution
640×480
Sensor Type
InfiRay MICRO II
Sensor Pixel Size
10μm
Thermal Sensitivity
<15mk
Sensor Frame Rate
60hz/30hz
Optics
Objective Focal Length
50mm
Detection Range
3060 Yards
Optical Magnification
3.5X
Display Type
AMOLED
Eye Relief
60mm
Digital Magnification
8X
Diopter Range
-5 to +5
Vertical Angular Field of View
5.5°
Horizontal Angular Field of View
7.3°
Focusing Mechanism
Manual Focus
Objective F#
0.9
Objective Diameter
50mm
Objective Lens Material
Germanium
Display Resolution
1440×1080
Objective Focal Length
50mm
Detection Range
3060 Yards
Optical Magnification
3.5X
Display Type
AMOLED
Eye Relief
60mm
Digital Magnification
8X
Diopter Range
-5 to +5
Vertical Angular Field of View
5.5°
Horizontal Angular Field of View
7.3°
Focusing Mechanism
Manual Focus
Objective F#
0.9
Objective Diameter
50mm
Objective Lens Material
Germanium
Display Resolution
1440×1080
Features & Performance
Startup Time
<10 Seconds, Instant from Standby
Rangefinder
Integrated 1200 yd LRF
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture
Yes
Storage Capacity
64GB
Connector Output
Power/Data
User-Updatable Firmware
Yes
Mobile App
Yes
One-Shot Zero
Yes
Stand-by Mode
Yes
Warranty
5 Years
Run Time
7+
Power Source
USB-C External, 18650 Battery
Reticle
8 (7 Static, 1 DIY)
Connector Type
USB-C
External Power Source
USB-C
Country of Manufacture
China
Wifi
Yes
Onboard Recording
Yes
Image Capture
Yes
Video Output
Yes
Startup Time
<10 Seconds, Instant from Standby
Rangefinder
Integrated 1200 yd LRF
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture
Yes
Storage Capacity
64GB
Connector Output
Power/Data
User-Updatable Firmware
Yes
Mobile App
Yes
One-Shot Zero
Yes
Stand-by Mode
Yes
Warranty
5 Years
Run Time
7+
Power Source
USB-C External, 18650 Battery
Reticle
8 (7 Static, 1 DIY)
Connector Type
USB-C
External Power Source
USB-C
Country of Manufacture
China
Wifi
Yes
Onboard Recording
Yes
Image Capture
Yes
Video Output
Yes
Physical
Mounting Interface
DLOC
Housing Material
Magnesium Alloy
Weight
25.56
Height
3.07
Width
4.05
Length
9.87
Mounting Interface
DLOC
Housing Material
Magnesium Alloy
Weight
25.56
Height
3.07
Width
4.05
Length
9.87
Environmental Specifications
Operating Temperature Range
-4°F~122°F
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
Ingress Protection
IP67
Operating Temperature Range
-4°F~122°F
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
Ingress Protection
IP67
Warranty
5 Years
• 10 μm high-performance thermal detector
• ≤15 mK sensitivity
• Magnesium housing
• Maximum detection range 3408 yards
• HD 1440×1080 AMOLED display
• High frame frequency: 60Hz or 30Hz
• Integrated 1,200yd laser rangefinder
• Multiple reticle types and color options
• Onboard ballistic solver
• Recoil activated video
• Standalone, handheld, and clip-on optic modes
• Multiple zero profiles and ranges
• Digital Zoom: ×1/×2/×4/×8
• Built-in 64 GB storage to support image capture and video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in digital compass and gravity sensor
• Picture in Picture (PIP)
• ≤15 mK sensitivity
• Magnesium housing
• Maximum detection range 3408 yards
• HD 1440×1080 AMOLED display
• High frame frequency: 60Hz or 30Hz
• Integrated 1,200yd laser rangefinder
• Multiple reticle types and color options
• Onboard ballistic solver
• Recoil activated video
• Standalone, handheld, and clip-on optic modes
• Multiple zero profiles and ranges
• Digital Zoom: ×1/×2/×4/×8
• Built-in 64 GB storage to support image capture and video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in digital compass and gravity sensor
• Picture in Picture (PIP)
• Pixel calibration functions
5 Year Warranty
