Thermal Imaging » Thermal Multipurpose Viewers » NocPix BOLT L35-R 384 12um 3.5x 35mm 50Hz Thermal Laser Range Finder

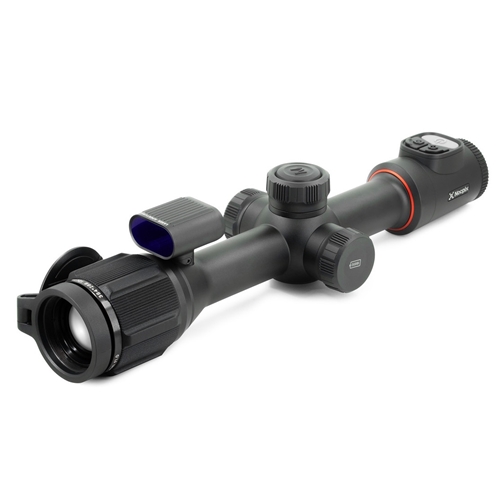

NocPix BOLT L35-R 384 12um 3.5x 35mm 50Hz Thermal Laser Range Finder
In stock
SKU:NOCPIX-BOLT-L35R
Regular Price: $2,199.00
On Sale For: $1,999.00
Free 2nd Day Shipping |
New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.

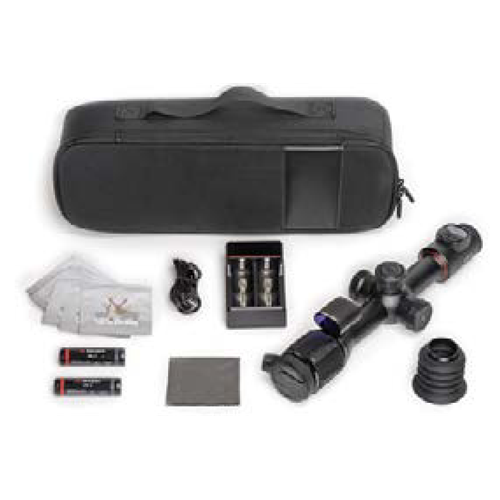

The NOCPIX BOLT Series thermal imaging scope ships with
everything you need to get out and hunt.
• Objective Lens Cap
• Standard Rubber Eyeguard
• 18650 Battery ×2
• Battery Charger
• USB-C Cable for Data/Video
• Soft Case and Straps
• Lens Cloth
• User Manual
everything you need to get out and hunt.
• Objective Lens Cap
• Standard Rubber Eyeguard
• 18650 Battery ×2
• Battery Charger
• USB-C Cable for Data/Video
• Soft Case and Straps
• Lens Cloth
• User Manual
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
Nocpix 384
- Sensor Resolution
-
384x288
- Sensor Pixel Size
-
12 µm
- Sensor Frame Rate
-
50 Hz
- Thermal Sensitivity
-
≤20 mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
Optics
- Objective Focal Length
-
35 mm
- Detection Range
-
1970 Yards
- Optical Magnification
-
3.5X
- Digital Magnification
-
4X
- Objective Lens Material
-
Germanium
- Horizontal Angular Field of View
-
7.5°
- Vertical Angular Field of View
-
5.7°
- Objective Diameter
-
35 mm
- Objective F#
-
1.0
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
50mm
- Display Type
-
AMOLED
- Diopter Range
-
-5 to +5
- Diopter Range
-
-5 to +5
- Display Resolution
-
1024×768
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1,300 Yard LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
32 GB
- Connector Output
-
Power/Data
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
6+
- Power Source
-
USB-C External, 18650 Battery, Built-In Battery Pack
- Reticle
-
8 (7 Static, 1 DIY)
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
Physical
- Length
-
14.8
- Width
-
3.6
- Height
-
3.0
- Weight
-
31.0 oz
- Housing Material
-
T-6063 Aluminum
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
• 12 μm high-performance thermal detector
• ≤20 mK sensitivity
• 1,300-yard integrated laser rangefinder
• 14× Stepped digital zoom
• T-6063 Aluminum housing
• Dual power supply solution for extended operation
• Maximum detection range: 1970 yards
• 1024×768 AMOLED display
• High frame frequency: 50Hz
• Recoil activated video
• Five ballistics profiles and a user-defined, multi-variable
ballistics calculator
• Multiple zero profiles and ranges
• Traditional 30 mm diameter housing design
• Built-in 32 GB storage to support image capture and
video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Gallery function for photo/video playback
• Picture in Picture (PIP)
• User-friendly interface
• Ultra-clear mode for advanced image detail
• Warm and cool image-hue options
• ≤20 mK sensitivity
• 1,300-yard integrated laser rangefinder
• 14× Stepped digital zoom
• T-6063 Aluminum housing
• Dual power supply solution for extended operation
• Maximum detection range: 1970 yards
• 1024×768 AMOLED display
• High frame frequency: 50Hz
• Recoil activated video
• Five ballistics profiles and a user-defined, multi-variable
ballistics calculator
• Multiple zero profiles and ranges
• Traditional 30 mm diameter housing design
• Built-in 32 GB storage to support image capture and
video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Gallery function for photo/video playback
• Picture in Picture (PIP)
• User-friendly interface
• Ultra-clear mode for advanced image detail
• Warm and cool image-hue options
• Pixel calibration function
5 Year Warranty
