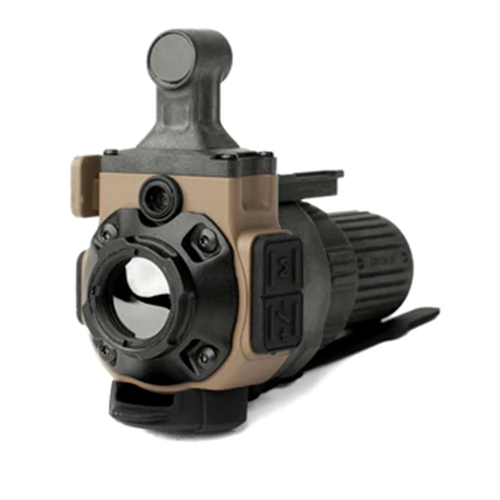

COTI InfiRay ELF-C PRO 640 12um Clip on Thermal Imager for Fusion w NVG InfiRay-Elf-C-Pro| NightVision4Less

View Larger Image

In stock

SKU:InfiRay-Elf-C-Pro

Regular Price: $3,999.00

On Sale For: $3,799.00

Free 2nd Day Shipping |

Shop With Confidence

Encrypted Safe Shopping100% Best DealFast, Free ShippingEasy ReturnsNight Vision Support

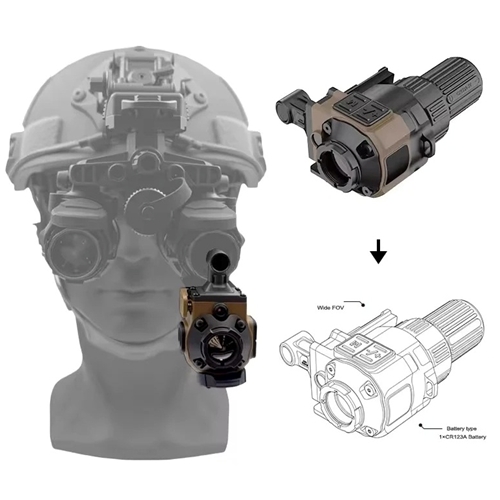

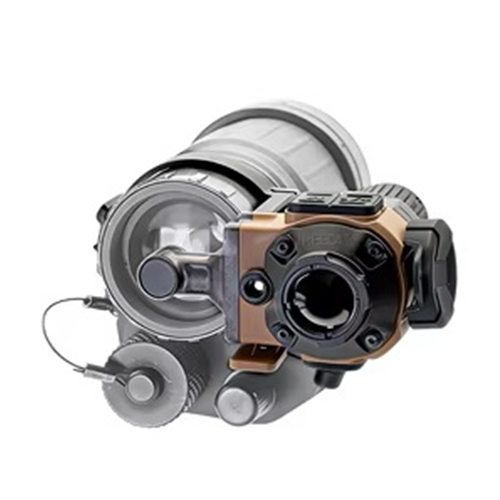

The InfiRay Elf-C Pro is an ultra-lightweight clip-on thermal imager (COTI) designed to mount onto night vision monoculars and goggles. It features a 640×512 resolution sensor, a 12µm pixel pitch, and a wide 35° × 30° field of view

The new Pro version introduces several improvements:

• Reduced weight to 62 g and a more compact form factor
• Expanded image overlay from 30° to 35° field of view
• Integrated digital magnetic compass and GPS
• Bluetooth remote control support
• Reinforced mounting ring
• Replacing the traditional scroll wheel with improved, tactile push-button controls
• Improved Battery Pack
• Enhanced image processing algorithm

Heads Up Display Settings
• Image Modes - Highlight / Outline / Breathing
• Battery Info
• Time (When the GPS module is turned on)
• Brightness
• Thermal overlay threshold and frequency
• GPS Location
• Menu

Key Features

Quick-Fusion Imaging: Merges thermal data with standard light-amplification night vision to reveal heat signatures hidden in dark or camouflaged environments.

Multiple Display Modes:

Features standard viewing layouts including white hot, highlight, and outline modes.

Integrated Controls: Built-in sensors allow automatic control adjustments, aided by an optional Bluetooth remote control for efficient operation.

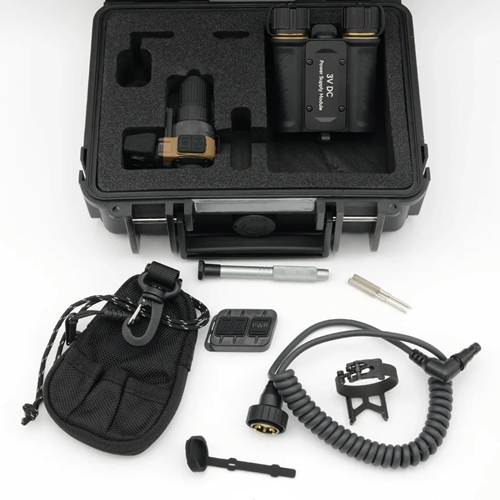

Included Accessories
Hardcase
Jerry C Pro Clip-On Thermal Imager
Mounting Bracket
Remote Control
Lens Cover
Screwdriver

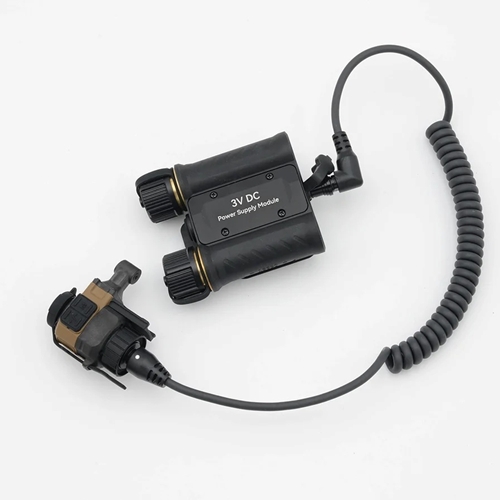

Battery Pack + Cable
Product Manual
Protective Lens Cap
Pouch

(NVG NOT INCLUDED)

Thermal & Optical Specs

Sensor Resolution: 640 × 512 pixels

Pixel Pitch: 12 µm

NETD (Thermal Sensitivity): ≤ 25 mK

Spectral Range: 8 µm – 14 µm

Magnification: 1×

Field of View (FOV): 35° (H) × 30° (V)

Aperture: F/1.0

Recognition Distance: 275 meters (for a 1.7m × 0.5m target)

Physical & System Specs

Weight: 65g (without battery) / 80g (with battery)

Dimensions: 86 mm × 65 mm × 40 mm

Waterproof Rating: IP67 (submersible up to 1.5m for 0.5 hours)

Operating Temperature: -40°C to +60°C

Battery Life: ~3 hours on one CR123A battery; up to 10 hours with an external battery pack

Control & Features: Bluetooth 2.4G remote control, electronic compass, and multiple display modes (Highlight, Outline, and White Hot)

Resolution 640×512 ·12μm
Field of View (FOV) 35°
Lens Diameter 11.5mm
Human Recognition Distance 275 m
Mode White-hot, Highlight, Outline
External Connectors GPS, Battery Pack, Image Storage
Power Supply CR123A 3V / 2x 18650 Battery Pack
Battery Life 3 Hours / 10 Hours Battery Pack
Weight 62 g (without battery)
Dimensions 86 × 65 × 40 mm
Night Vision Compatibility PVS-14, ARGUS BNVD, NVG ALPHA, AB MGA, AB ARNVG, AB RVM-14, APNVG and more
Auto Shut-Down Yes
Automatic Brightness Yes
Flip-Up On-Off Yes
Digital Magnetic Compass Yes
Remote Control Yes
Minimum Fusion Distance 10m

640×512 RESOLUTION
INTEGRATED SENSORS ENABLING VARIOUS AUTOMATIC CONTROLS
QUICK-FUSION IMAGING COMPATIBLE WITH CONVENTIONAL NVDS
THE LIGHTEST DEVICE IN THE WORLD WITH ONLY 65G
35° WIDE FOV
RICH EXPANSION ACCESSORIES FOR EFFECTIVE INFOR MATION ENHANCEMENT
BLUETOOTH REMOTE CONTROL FOR AST AND EFFICIENT OPERATION
DUAL POWER SEPARATION CABLE COMPATIBLE WITH IMAGE TUBE NIGHT VISION POWER SUPPLY SYSTEMS

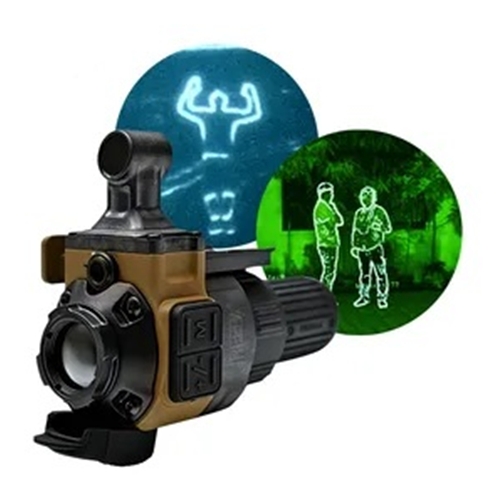

3 Modes: White-hot/Highlight/Outline

Bi-spectrum image fusion and object highlight
Detail enhancement and target recognition

Selection of thermal view channel, I2 night vision channel, or both them combined with multiple fusion modes switchable

12 μm, 640x512 high-sensitivity thermal detector

Azimuth and Pitch/Inclination Indication

Brightness and contrast image adjustment

Extra large exit pupil diameter (15mm)

Waterproof
