Thermal Imaging » Thermal Multipurpose Viewers » RIX Optics STORM-S3R V2 LRF 384 12um 3.5x 35mm 50Hz Thermal Laser Rangefinder

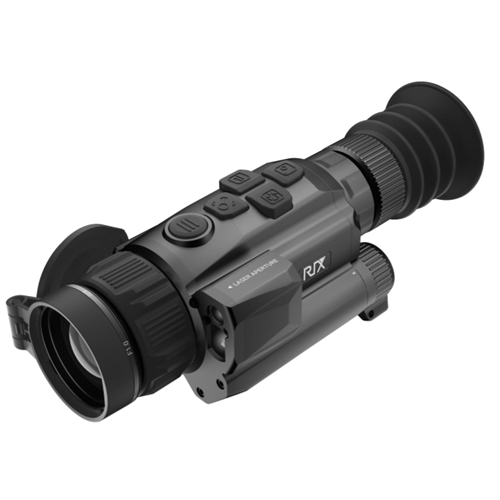

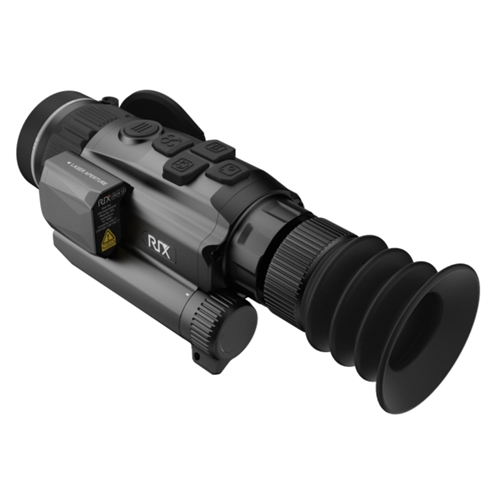

RIX Optics STORM-S3R V2 LRF 384 12um 3.5x 35mm 50Hz Thermal Laser Rangefinder
In stock
SKU:STORM-S3R-V2-LRF
Regular Price: $2,199.00
On Sale For: $1,999.00
Free 2nd Day Shipping |
The RIX STORM S3R V2 is a compact, high-performance thermal imaging riflescope , the V2 model significantly upgrades the original Storm series' thermal sensitivity, display resolution, on-board storage, and laser ranging capabilities. It is designed primarily for close-to-medium-range hunting, offering a highly sensitive thermal core alongside advanced ballistic integration.
Core Imaging & Performance
• Thermal Sensor: Features a 384x288 resolution, 12-micron sensor operating at a smooth 50Hz refresh rate.
• Ultra-High Sensitivity: Upgraded to a sub-15 mK NETD rating (a 40% improvement over the V1), drastically improving target-to-background separation in poor weather or low-contrast conditions.
• Optical Magnification: Retains a native 3.5x base magnification, making it highly effective for close-quarters shooting up to a 200–250 yard effective hunting range.
Display & Hardware Upgrades
• AMOLED Display: Upgraded from the older 1024x768 screens to a highly detailed, 0.49-inch 1920x1080 AMOLED internal display.
• Laser Rangefinder (LRF): The built-in LRF distance has been extended by over 60%, tracking distances up to 2,187 yards with specialized rain and fog algorithms.
• Ballistic Calculator: Includes real-time onboard ballistic math that projects automatic aiming guidance directly onto the screen based on shooting conditions.
• Ergonomics & Rail: Features a redesigned mounting rail that is roughly one inch longer and half an inch higher to better accommodate bolt clearance on bolt-action rifles. Eye relief has also expanded slightly to 52mm.
Media & Electrical Specs
• Expanded Storage: Internal memory has doubled from 32GB to 64GB to hold significantly more captured media.
• Enhanced Video: Photo and video recording resolutions are bumped up to a clearer 1744x1072 format.
Core Imaging & Performance
• Thermal Sensor: Features a 384x288 resolution, 12-micron sensor operating at a smooth 50Hz refresh rate.
• Ultra-High Sensitivity: Upgraded to a sub-15 mK NETD rating (a 40% improvement over the V1), drastically improving target-to-background separation in poor weather or low-contrast conditions.
• Optical Magnification: Retains a native 3.5x base magnification, making it highly effective for close-quarters shooting up to a 200–250 yard effective hunting range.
Display & Hardware Upgrades
• AMOLED Display: Upgraded from the older 1024x768 screens to a highly detailed, 0.49-inch 1920x1080 AMOLED internal display.
• Laser Rangefinder (LRF): The built-in LRF distance has been extended by over 60%, tracking distances up to 2,187 yards with specialized rain and fog algorithms.
• Ballistic Calculator: Includes real-time onboard ballistic math that projects automatic aiming guidance directly onto the screen based on shooting conditions.
• Ergonomics & Rail: Features a redesigned mounting rail that is roughly one inch longer and half an inch higher to better accommodate bolt clearance on bolt-action rifles. Eye relief has also expanded slightly to 52mm.
Media & Electrical Specs
• Expanded Storage: Internal memory has doubled from 32GB to 64GB to hold significantly more captured media.
• Enhanced Video: Photo and video recording resolutions are bumped up to a clearer 1744x1072 format.
• Power & Build: Runs for roughly 4 to 5 hours on a single, replaceable 18650 battery. The chassis is IP67 waterproof rated and built to absorb up to 1000g of recoil impact.
Package Contents
Picatinny QD Mount (QDM-S02)
Throw Lever
Dust Cover
Battery Charger
Battery ×2
Battery Fireproof Bag
USB Type-C Cable
Thermal Target ×10
Hex Key
Lens Cloth
Picatinny QD Mount (QDM-S02)
Throw Lever
Dust Cover
Battery Charger
Battery ×2
Battery Fireproof Bag
USB Type-C Cable
Thermal Target ×10
Hex Key
Lens Cloth
Sensor Specifications
Type
VOx Uncooled
Resolution
384×288
Pixel Pitch
12μm
NETD
<15 mK
Frame Rate
50 Hz
Optical Specifications
Objective Lens
35mm, F1.0
Optical Zoom
Base Magnification
3.5×
Digital Zoom
1~ 4×
Field of View (H×V), degrees/yd@100yd
7.5°×4.6°/13.2yd×8.1yd
Eye Relief
52mm
Diopter Adjustment
-5D to +5D
Detection Range
1969yd
Display Specifications
Type
AMOLED
Resolution
1920x1080 0.49 inch
Laser Rangefinding & Ballistic Calculation
Max. Measuring Range
2187yd
Measurement Accuracy
±1.09yd
Ballistic Calculation
Yes, 5 Zeroing Profiles Supported
Wi-Fi
Wi-Fi / App
Support (RIX+)
Video Recorder
Video / Photo Resolution
1744x1027
Video / Photo Format
.mp4 / .jpg
Built-in Memory
64GB
Physical Specifications
Degree of Protection
IP67
Operating Temperature Range
-4°F to +122°F
Weight
1.16 lb
Dimension
6.4×2.9×2.6 in
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=72°F)
4 h
External Power Supply
5V (Type-C USB)
Max Recoil Power on Rifled Weapon (Eo)
1000g / 6000J
Compatible Mounts
Picatinny Mount
WARRANTY
5 YEARS
Core Optical & Thermal Specs
• Sensor Resolution: Features a 384×288 thermal sensor with a 12-micron pixel pitch and a 50Hz refresh rate.
• Thermal Sensitivity (NETD): Upgraded to <15 mK (down from <25 mK), offering exceptional detail separation and performance in humid or fog-heavy conditions.
• Magnification & Zoom: Offers a 3.5x base optical magnification with 1x to 4x digital zoom, capable of reaching up to 14x total magnification.
• Objective Lens: Equipped with a 35mm F1.0 focusable lens.
• Detection Range: Can detect a standard 6-foot tall object out to 1,969 yards (1800m).
Targeting & Ballistics
• Extended Laser Rangefinder (LRF): Features an integrated LRF that measures distances up to 2,187 yards (a 60%+ increase over the original V1 range), utilizing advanced rain and fog tracking algorithms.
• Ballistic Calculator: Includes an onboard ballistic calculator capable of saving 5 custom zeroing profiles to automatically compute aiming holds.
• Independent PIP Mode: The Picture-in-Picture window magnification can be scaled independently of the main screen.
• Precise Zeroing: Features fine adjustments at 0.27 inches per click at 100 yards (0.26 MOA).
• Customization: Includes 9 distinct reticle styles and 6 select color palettes (including White Hot, Black Hot, and Green/Red Monochromes).
Display & Media Features
• 1080p AMOLED Display: Upgraded to a 0.49-inch 1920×1080 AMOLED screen for higher contrast and much sharper clarity over legacy models.
• Doubled Storage: Internal storage has expanded to 64 GB (up from 32 GB) to hold massive amounts of media.
• Higher Recording Resolution: Captures both audio and high-resolution video/photos at 1744×1072 pixels.
• Smart App Control: Integrated Wi-Fi connects to the RIX+ App for live device streaming and seamless over-the-air firmware updates.
Build, Hardware & Battery
• Power Supply: Runs on a single, user-replaceable 18650 battery providing roughly 4 to 5 hours of continuous operation.
• Rugged Construction: Rated for 1000g of impact resistance, allowing it to absorb intense recoil from heavy platforms like .300 Win Mag, .375 H&H, or 12-gauge shotguns.
• Environmental Protection: Features an IP67 waterproof and dustproof chassis.
• Form Factor: Weighs roughly 1.16 lbs (525g) without the external battery, doubling perfectly as a handheld scanner or dedicated weapon optic.
• Sensor Resolution: Features a 384×288 thermal sensor with a 12-micron pixel pitch and a 50Hz refresh rate.
• Thermal Sensitivity (NETD): Upgraded to <15 mK (down from <25 mK), offering exceptional detail separation and performance in humid or fog-heavy conditions.
• Magnification & Zoom: Offers a 3.5x base optical magnification with 1x to 4x digital zoom, capable of reaching up to 14x total magnification.
• Objective Lens: Equipped with a 35mm F1.0 focusable lens.
• Detection Range: Can detect a standard 6-foot tall object out to 1,969 yards (1800m).
Targeting & Ballistics
• Extended Laser Rangefinder (LRF): Features an integrated LRF that measures distances up to 2,187 yards (a 60%+ increase over the original V1 range), utilizing advanced rain and fog tracking algorithms.
• Ballistic Calculator: Includes an onboard ballistic calculator capable of saving 5 custom zeroing profiles to automatically compute aiming holds.
• Independent PIP Mode: The Picture-in-Picture window magnification can be scaled independently of the main screen.
• Precise Zeroing: Features fine adjustments at 0.27 inches per click at 100 yards (0.26 MOA).
• Customization: Includes 9 distinct reticle styles and 6 select color palettes (including White Hot, Black Hot, and Green/Red Monochromes).
Display & Media Features
• 1080p AMOLED Display: Upgraded to a 0.49-inch 1920×1080 AMOLED screen for higher contrast and much sharper clarity over legacy models.
• Doubled Storage: Internal storage has expanded to 64 GB (up from 32 GB) to hold massive amounts of media.
• Higher Recording Resolution: Captures both audio and high-resolution video/photos at 1744×1072 pixels.
• Smart App Control: Integrated Wi-Fi connects to the RIX+ App for live device streaming and seamless over-the-air firmware updates.
Build, Hardware & Battery
• Power Supply: Runs on a single, user-replaceable 18650 battery providing roughly 4 to 5 hours of continuous operation.
• Rugged Construction: Rated for 1000g of impact resistance, allowing it to absorb intense recoil from heavy platforms like .300 Win Mag, .375 H&H, or 12-gauge shotguns.
• Environmental Protection: Features an IP67 waterproof and dustproof chassis.
• Form Factor: Weighs roughly 1.16 lbs (525g) without the external battery, doubling perfectly as a handheld scanner or dedicated weapon optic.
• Redesigned Ergonomics: Includes a shifted LRF module for smoother bolt-action rifle cycling, an extended 52mm eye relief, and an upgraded quick-detach Picatinny mount.
