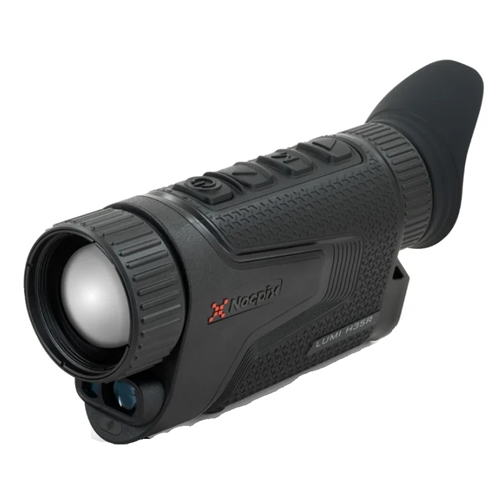

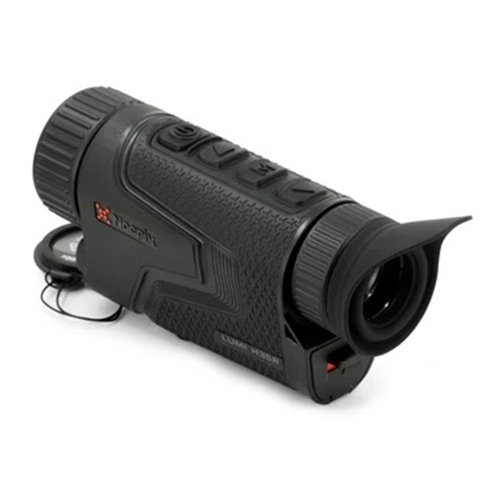

NocPix LUMI H35R 640 12um 2.5x 35mm 50Hz Compact Thermal Monocular Laser Rangefinder
In stock
Regular Price: $2,499.00
On Sale For: $2,399.00
Free 2nd Day Shipping |
LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 384x288 (L35) or 640x512 (H35) paired with a 1024x768 AMOLED display. Available models offer either a 2.5x base magnification (H35) for a wider field of view, or a 4x base magnification (L35) for identifying targets at greater distances.
Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
Weatherproof rubberized texture increases durability and is not cold to the touch.
Powered by a common 18650 style rechargeable battery with a spare battery included.
Advanced R+ image processing provides enhances image quality during digital zoom.
Onboard photo, video, and audio recording.
The LUMI Series thermal imaging monocular ships with everything you need to get out and hunt.
• Objective Lens Cap
• 18650 Batteries ×2
• 18650 Battery Charger
• USB-C Cable
• Carrying Bag and Straps
• Lens Cloth
• User Manual
Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
Weatherproof rubberized texture increases durability and is not cold to the touch.
Powered by a common 18650 style rechargeable battery with a spare battery included.
Advanced R+ image processing provides enhances image quality during digital zoom.
Onboard photo, video, and audio recording.
Comfortable ambidextrous vertical design.
The result is the LUMI LRF series. Featuring a new integrated 875-yard laser rangefinder with ±1-yard accuracy, this model retains the IRB-2 (18650-style) battery system, a 1024×768 AMOLED display, and all of the proven features of the original LUMI lineup.
- Integrated 875-yard laser rangefinder
- Lightweight, compact design fits easily in a pocket or included MOLLE-compatible pouch
- Weatherproof rubberized texture for increased durability and cold-weather comfort
- Powered by a common 18650-style rechargeable battery (spare battery included)
- Advanced R+ image processing for enhanced image quality during digital zoom
- Onboard photo, video, and audio recording
The LUMI Series thermal imaging monocular ships with everything you need to get out and hunt.
• Objective Lens Cap
• 18650 Batteries ×2
• 18650 Battery Charger
• USB-C Cable
• Carrying Bag and Straps
• Lens Cloth
• User Manual
Sensor Specifications
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Device Technology
-
Thermal Imaging
- Sensor Resolution
-
640×512
- Sensor Type
-
Nocpix 640
- Sensor Pixel Size
-
12μm
- Thermal Sensitivity
-
<18mk
- Sensor Frame Rate
-
50hz
Optics
- Objective Focal Length
-
35mm
- Detection Range
-
1750 Yards
- Optical Magnification
-
2.5X
- Display Type
-
AMOLED
- Eye Relief
-
25mm
- Digital Magnification
-
8X
- Diopter Range
-
-5 to +5
- Vertical Angular Field of View
-
9.4°
- Horizontal Angular Field of View
-
12.5°
- Focusing Mechanism
-
Manual Focus
- Objective F#
-
0.9
- Objective Diameter
-
35mm
- Display Resolution
-
1024×768
- Objective Lens Material
-
Germanium
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 875 yd LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
32GB
- Connector Output
-
Power/Data
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
4+
- Power Source
-
USB-C External, 18650 Battery
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Connector Type
-
USB-C
- Video Output
-
Yes
- External Power Source
-
USB-C
Physical
- Housing Material
-
Polymer
- Weight
-
11.82 oz
- Height
-
2.91
- Width
-
1.84
- Length
-
5.63
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Ingress Protection
-
IP67
Warranty
5 Years
Built In Laser Rangefinder
• Reality+ technology
• 12 μm 640 high-performance thermal detector• ≤18 mK sensitivity
• Digital zoom from 1.0×–4.0×
• Polymer housing with rubber overmold
• Includes two rechargeable 18650 batteries
• Maximum detection range 1750 yards
• 1024×768 AMOLED display
• High frame frequency: 50Hz
• Built-in 32 GB storage to support image
capture and video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Picture in Picture (PIP)
• Ultra-Clear mode
• Multiple color palettes
• Compact and lightweight
• Warm and cool image-hue options
• User-friendly interface
5 Year Warranty
