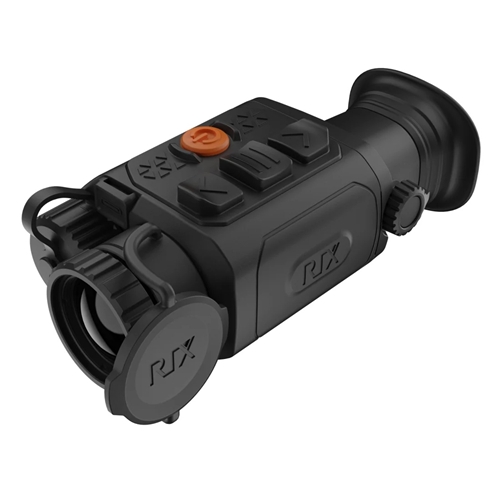

RIX Optics STRIDE-ST6 LITE 640 12um 25mm 50Hz Thermal Monocular
In stock
Regular Price: $2,199.00
On Sale For: $2,099.00
Free 2nd Day Shipping |
The RIX Optics STRIDE ST6 Lite is an ultra-lightweight, multi-use thermal imaging monocular engineered for both handheld scanning and helmet-mounted navigation. Featuring a high-resolution 640×512 thermal sensor and true 1x base magnification, it is specifically designed to allow users to walk safely and maintain natural situational awareness while hands-free.
Core Overview & Performance
The ST6 Lite stands out for delivering a high-end 640-resolution thermal image inside an incredibly compact chassis about the size of a standard rangefinder. It utilizes an uncooled VOx sensor with an exceptional thermal sensitivity rating (NETD) of under 20 mK, allowing it to pick up minute heat differentials and cut through harsh weather, fog, or dense brush. Its 1x base magnification is paired with a wide 17.5° field of view, making it an ideal choice for rapid field scanning, hunting, and tactical patrolling.
The ST6 Lite stands out for delivering a high-end 640-resolution thermal image inside an incredibly compact chassis about the size of a standard rangefinder. It utilizes an uncooled VOx sensor with an exceptional thermal sensitivity rating (NETD) of under 20 mK, allowing it to pick up minute heat differentials and cut through harsh weather, fog, or dense brush. Its 1x base magnification is paired with a wide 17.5° field of view, making it an ideal choice for rapid field scanning, hunting, and tactical patrolling.
Technical Specifications
• Thermal Sensor: 640×512 resolution, 12μm pixel pitch, <20 mK NETD, 50 Hz refresh rate
• Optics: 25mm F1.0 objective lens with manual adjustable focus
• Magnification & Zoom: 1x base magnification; 1–6x overall magnification via 1x, 2x, and 4x digital zoom
• Display: 1024×768 resolution OLED screen
• Detection Range: Approximately 1,300 meters / 1,423 yards
• Dimensions & Weight: 129 × 71 × 47 mm (5.1 × 2.8 × 1.9 inches); weighs just 205 g (0.45 lbs)
• Thermal Sensor: 640×512 resolution, 12μm pixel pitch, <20 mK NETD, 50 Hz refresh rate
• Optics: 25mm F1.0 objective lens with manual adjustable focus
• Magnification & Zoom: 1x base magnification; 1–6x overall magnification via 1x, 2x, and 4x digital zoom
• Display: 1024×768 resolution OLED screen
• Detection Range: Approximately 1,300 meters / 1,423 yards
• Dimensions & Weight: 129 × 71 × 47 mm (5.1 × 2.8 × 1.9 inches); weighs just 205 g (0.45 lbs)
Key Features & Capabilities

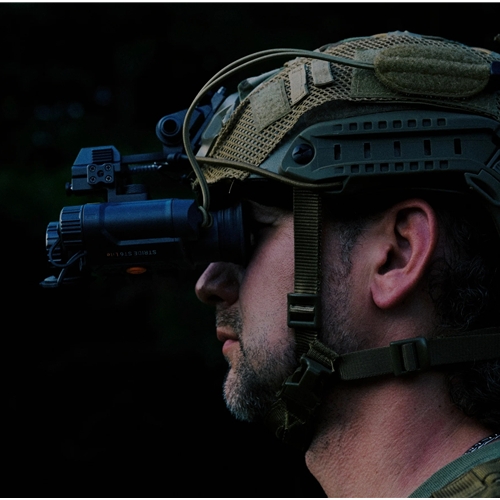

• Dual-Use Design: Features built-in screw threads and an offset dovetail style interface compatible with standard helmet bridge mounts (such as the RIX BM-01) or vehicle attachments.
• 6 Color Palettes: Offers multiple viewing modes including White Hot, Black Hot, Red Hot, Red Monochrome, Green Monochrome, and Color to minimize eye strain and match environmental conditions.
• Multimedia Integration: Equipped with 32GB of internal memory and a built-in microphone to record .mp4 videos and .jpg photos at 1024×768 resolution.
• Wireless Connectivity: Integrated Wi-Fi connects directly to the RIX+ mobile app for live video streaming, media transfers, and over-the-air firmware updates.
• Rugged Construction: Rated IP67 dustproof and waterproof, operational in temperatures ranging from -20°C to +50°C (-4°F to 122°F).
Power
The unit runs on a single, removable 18650 rechargeable lithium battery, which provides roughly 4 hours of continuous runtime at standard temperatures. It also features a 5V USB Type-C port allowing for continuous operation via external battery packs.
Includes:
The box includes the STRIDE ST6 Lite device, an 18650 battery and charger, two adapter kits, a USB-C cable, a lanyard, a lens cloth, and a fireproof storage bag.
The box includes the STRIDE ST6 Lite device, an 18650 battery and charger, two adapter kits, a USB-C cable, a lanyard, a lens cloth, and a fireproof storage bag.
Sensor Specifications
Type
VOx Uncooled
Resolution
640×512
Pixel Pitch
12μm
NETD
<20 mK
Frame Rate
50 Hz
Optical Specifications
Objective Lens
25mm, F1.0
Optical Zoom
Base Magnification
1×
Digital Zoom
1~ 6×
Field of View (H×V), degrees/yd@100yd
17.5°×13.1°/30.7yd×23yd
Eye Relief
20mm
Diopter Adjustment
-5D to +5D
Detection Range
1423yd
Display Specifications
Type
OLED
Resolution
1024×768
Wi-Fi
Wi-Fi / App
Support (RIX+)
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specifications
Degree of Protection
IP67
Operating Temperature Range
-4°F to +122°F
Weight
0.45 lb
Dimension
5.1×2.8×1.9 in
Connections and Compatibilities
Battery Type
18650 (70mm length)
Operating Time on Battery Pack (at t=72°F)
4 h
External Power Supply
5V (Type-C USB)
WARRANTY
5 Years
Core Imaging & Optical Specs
- Thermal Sensor: Features a high-resolution 640×512 VOx uncooled thermal sensor with a 12μm pixel pitch.
- Thermal Sensitivity: Boasts an exceptionally sensitive NETD <20 mK, making minute temperature variations visible even in tough weather like fog, rain, or high humidity.
- Optical Profile: Equipped with a 25mm F1.0 objective lens featuring an adjustable focus ring.
- Magnification & Zoom: Starts at a true 1× base magnification (ideal for walking while helmet-mounted) and supports a step digital zoom from 1× to 6×.
- Field of View (FOV): Provides a wide 17.5° × 13.1° horizontal/vertical FOV (approx. 92 feet at 100 yards), optimal for situational awareness and broad scanning.
- Refresh Rate: Operates at 50 Hz to deliver lag-free, smooth real-time imaging.
- Detection Range: Can detect heat signatures at distances up to 1,300 meters (approx. 1,423 yards).
Display & Software Features
- OLED Display: Projects imagery onto a crisp 1024×768 OLED screen.
- Color Palettes: Features 6 distinct color palettes, including white-hot, black-hot, red-hot, red monochrome, green monochrome, and full color.
- Image Stabilization & Correction: Includes electronic image stabilization (active at 2x zoom and higher), automatic standby mode, and auto-shutter image correction.
- Weather Modes: Offers dedicated Sun and Rain modes to optimize visibility under dense fog or heavy humidity.
- Display Scales: Supports 1× and 1.5× display modes, where the 1.5× mode stretches the UI to fill the screen—helpful if the unit is positioned farther from the eye on a bridge setup.
Hardware, Media, & Power
- Form Factor & Weight: Weighs an ultra-light 205g (0.45 lbs) with compact dimensions of 129×71×47 mm, constructed with a durable polymer housing and solid rubber armor.
- Mounting Integration: Comes with a dovetail adapter out of the box, allowing seamless integration into helmet bridge mounts (such as the optional RIX BM-01 bridge for switching left/right eye use). Note: It is not weapon-mountable due to its polymer chassis.
- Onboard Recording: Includes 32GB of internal storage to record photos (.jpg) and videos (.mp4) with a built-in microphone.
- Connectivity: Built-in Wi-Fi pairs with the RIX+ mobile app for live streaming, wireless file transfers, and over-the-air firmware updates.
- Power Supply: Runs on a single, swappable 18650 rechargeable battery (70mm button-top version) yielding roughly 4 hours of runtime. It also features a 5V USB Type-C port for tethering external power packs or offloading data.
- Environmental Protection: Carries an IP67 waterproof and dustproof rating, with an operational temperature threshold spanning -4°F to 122°F (-20°C to +50°C).
