FLIR Scion PTM166 640x480 13.8mm 60Hz .7x-5.6x Thermal Monocular 7TM-01-F310

FLIR Scion PTM166 640 13.8mm 60Hz .7x-5.6x Thermal Monocular

View Larger Image

In stock

SKU:7TM-01-F310

Regular Price: $3,459.00

On Sale For: $3,399.00

Free 2nd Day Shipping |

Shop With Confidence

Encrypted Safe Shopping100% Best DealFast, Free ShippingEasy ReturnsNight Vision Support

Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion™ PTM packs high-performance thermal imaging and FLIR TruWITNESS® compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

Live Encrypted Video Streaming

Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.
Rich User Interface

The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic
Superior Thermal Detection

The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

Includes:

Battery tray

2xCR123

USB-C cable

Black MOLLE pouch

Quick Start Guide

System Overview

Detector Type: 640 x 480

Eye Relief: 16 mm

Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)

Size: 227 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)

Color (housing): Black

Lens System
13.8 mm

Optical Magnification: .7x

Display Focus: Manual

Core Technology: BOSON 12 µm Vox Microbolometer

Connections & Communications

Bluetooth: BLE 4.1+

Geo Positioning [GPS]: No

Video Recording: Yes

WiFi: Video Streaming, File Transfer

TruWITNESS Integration: Yes

Imaging & Optical

Digital Zoom: 1X | 2X | 4X | 8X

Field of View: 32° × 24°

Focus: ∞

Refresh Rate: 60 Hz

Physical

Mounting: ¼-20 Tripod Mount

Weight: Without Batteries: 452 g; With Batteries 572 g

Power

Auto Power Off: Yes

Battery Life: Up to 4.5 hours at 20°C

Battery Type: 6x CR123A 3V Lithium Battery

Presentation

Display: Quad-VGA (1280x960) High definition display

Image Capture: Yes

User Interface: USB-C; Power In; Video Out; Video and Image File Transfer

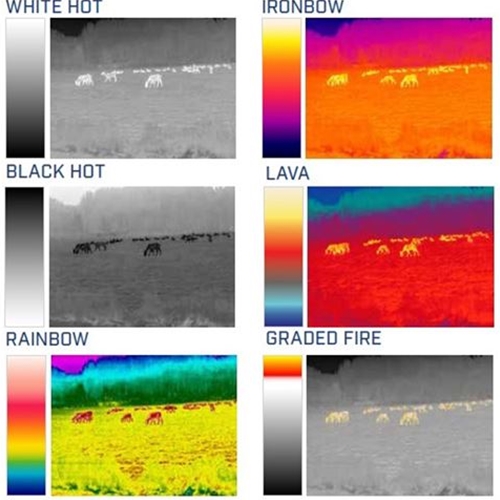

Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava

Viewing Modes: Scouting, Picture-in-Picture

Picture While Recording: Yes

Real Time Clock: Yes

DateTime Stamp: Yes

Magnetic Compass: Yes

Accelerometer: Yes

Warranty

3 Year Full, 10 Year Thermal Core

640 Thermal Sensor
Sharp, 60 Hz thermal imaging powered by the FLIR Boson thermal core
Live encrypted video streaming
Maintain peripheral awareness
Onboard recording, picture-in-picture zoom, and intuitive controls
13.8 mm lens
FLIR TruWITNESS® compatibility
3 Year Full Warranty, 3 Year Warranty Battery, 10 Year Warranty Thermal Sensor
